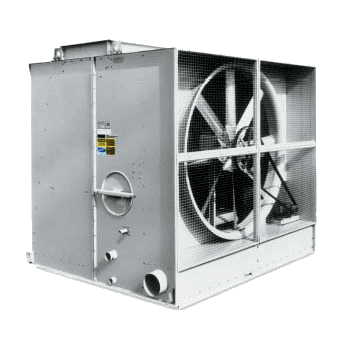

TM Series Cooling Towers are ready to meet the demands of today's industry.
With a forced draft design, thermal efficient wet deck, large orifice spray nozzles,
and energy efficient motor, this cooling tower supplies inexpensive cooling water for
hydraulics, condensers, temperature controllers, and other machinery.

Features:

• 6 to 200 Tons Capacity
• Galvanized Steel Construction
• Heavy Duty Lifting Hooks
• Leak-proof access doors
• Fixed pitch fan
• Open Gravity Feed Hot Water Basin
• PVC Constructed Wet Deck
• Large Diameter Metering Orifices

TM Series Cooling Towers are an economically affordable means of transferring heat.  The G210 hot-dip galvanized construction is coated on the outside with zinc chromatized paint.  Double-brake flanges provide maximum strength.

The unit's motor is mounted on a adjustable base and is designed so that all belts are easily adjusted.  Six to 20 ton models have a direct drive assembly, while the 26 to 200 ton models have a V belt drive assembly.

An efficient PVC wet deck is impervious to rot and decay, while maximizing air to water contact. The heavily constructed fan has a fixed pitch and is matched to the specific size of the tower to ensure maximum efficiency.

The open gravity feed water basin includes a velocity breaker and large diameter metering orifices.  The brass float valve system is easily adjusted and can also be installed on a remote pump tank.
