Screw Reconditioning

NOTE: If sending in a screw for inspection that has plastic resin on it,
then a MSDS for the resin MUST accompany the screw.

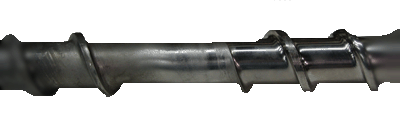

Standard Rebuilding:

In most cases, screws can be rebuilt at a considerable cost savings over replacement. Flights rebuilt with Stellite or Colmonoy Hardfacing normally last longer than a new general purpose screw.

We can rework root diameters, change compression ratios, replace broken drive ends and tip ends, repair I.D. threads, etc. Rebuilt screws can also be hard Chrome plated or Nitrided.

Most standard rebuilding can be estimated over the telephone. Standard rebuilding consists of inspection, grinding down the flight O.D., building up with Stellite #12, grinding the root diameter to clean-up, adding the surface treatment, finish grinding, straightening, and polishing. Phone estimates are not firm until inspection has been completed. There is "NO CHARGE" for inspection. You will be contacted with a firm price and no work is ever performed without your approval.

Incoming Freight Policy:

To help prevent loss during shipping, please attach a copy of your packing slip to the part itself, as well as the outside of the box.
Plastic Services & Equipment will hold parts sent in for inspection for a maximum period of six (6) months, after which the parts will be scrapped at our warehouse (unless prior arrangements have been made).
Parts to be returned to you will be shipped freight collect.
All incoming parts for rebuilding, repairs, etc. must be shipped to PS&E "Freight Prepaid" in a strong, reusable container (see examples below). The Bill-of-Lading should be marked: MACHINERY PARTS, STEEL, CLASS 85, FREIGHT PREPAID. Smaller items weighing 70 pounds or less should be shipped via UPS Prepaid. In the event that items are received "Freight Collect", our Receiving Department must obtain approval prior to accepting the shipment. If the shipment is accepted, you will be billed for the freight plus a $35.00 Processing Fee. PS&E reserves the right to refuse the shipment. Terms for Freight Charges: Net 10 Days. A copy of the original freight bill will be sent with the invoice.
If parts are received in a non-reusable container, PS&E will build a crate to return the repaired parts, and the customer will be billed for the cost of the crate.

Preferred Packaging Method:

Not Recommended:

Strong, reusable wood crate.
Double secured with nails and banding.
Built for moving with a fork truck.

Parts hanging unsupported over edge of skid; potential damage.
No supports to prevent parts from rolling into each other; potential damage.
Banding not strong enough to hold parts immobile; potential loss of parts.
