Chin Lih Fa Check Valves

If you're buying all of your check valves from the O.E.M., you're paying too much! PS&E check valves are made from significantly higher quality tool steels than available through the O.E.M. Along with better quality, PS&E provides customized designing of the check valve to successfully work with your brand of molding machine and type of application. And PS&E offers them at significantly lower prices than the O.E.M. can offer. PS&E check valves are the BEST VALUE in the industry!

We stock a wide variety of brands, plus we also can manufacture any check valve. Using your sample tip assembly, your print or a print from our extensive library, we will manufacture a screw tip assembly to match your specific requirements. PS&E check valves are available in a wide variety of tool steels to match your application.

The following brands of check valves are in stock and ready to ship.

Arburg
Autojector
Battenfeld
Beloit
Bipel
Boston Matthews
Boy
Bucher
Chaun Lih Fa
Cincinnati
Cincinnati ACT
Cincinnati Roboshot
Cincinnati Vista
Cincinnati Vista Sentry
Demag
Desma
Dima
Dong Shin
Egan
Engel
Farrel
Fellows
Ferromatik
Fortune

Fu Chun Shin
Gloenco
Gloucester
Gluco
Goldstar
Haitian
Hettinga
HPM
Hull
Husky
Illinois Precision
Impco
Jaco
Johns
Jomar
JSW
Kawaguchi
Kenplas
Klockner Ferromatik
Klockner Windsor
Krauss-Maffei
Kuasy
Lester
Lombard
Maplan

Martinand
McNeil
Meiki
Metalmec
Mini-jector
MIR
Mitsubishi
Moslo
Multiplas
Natco
Negri Bossi
Netstal
New Britain
Newbury
Niigata
Nissei
Nissin
Pentaject
Presma
Promax
Pyramid
Reed Prentice
Rutil
Sandretto
Seiko

Shinwa Seiki
Sodick
Stokes
Stork
Stubbe
Sumitomo
Tien Fa
TMC
Toshiba
Toyo
Triulzi
Trubor
Trueblood
UBE
Van Dorn
Van Dorn / Demag
Van Dorn / GT
Wabash MPI
Welltec
Willert
Windsor
YCI - Supermax

We have an extensive CAD library consisting of thousands of prints for screw tips, check valves, barrels, screw, nozzles, end caps, etc. If you need a quote and there isn't a print available, simply send us a used sample part and specify what material you want the new one made from. (Hint: Always save your original check valves. They are valuable for verification of dimensions when ordering new assemblies.)

No one check valve design is perfect for every application; therefore, we offer three distinct designs to ensure the proper component for your application.

PS&E ACCU-FLO™ Design
Advantages:

• Excellent Design for Most Plastics
• Good for Color Mixing
• Good Shut-off
• Faster Screw Recovery - Less Heat Build-up
• Possibility of Faster Cycles
• 3-Piece Design

Improved Designs With Non-Rotating Rings For These Popular Brands:

- Cincinnati ACT / Roboshot
- Goldstar
- JSW
- Kawaguchi
- Mitsubishi
- Nissei
- Nissin
- Sumitomo
- Toshiba
- Toyo

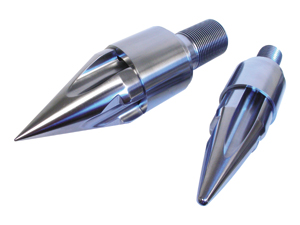

PS&E ACCU-FLOW SCREW TIP

PS&E OEM Design
Advantages:

• Good Design for Most General Purpose Materials
• Excellent Shut-off
• Excellent for Small Precise Shots
• OEM Compatible
• Rotating Ring Design Where Applicable
• All the Best Characteristics of OEM plus custom-designed enhancements to improve overall performance
• 3-Piece Design

PS&E OEM SCREW TIP

PS&E 4-Piece Design

Advantages:

• Ideal for high abrasion materials
• Alloy Tool Steel Nitrided
• Carbide Faced
• Ceramic Faced
• 4-Piece Design

PS&E Four-Piece Screw Tip Assembly

H-13 Tool Steel
A good high strength pre-hardened tool steel which is machined, thru-hardened, and ground dimensionally, then nitride hardened for 72 hours for better wear resistance. H-13 is tough and can handle pressure and torque.

D-2 Tool Steel
A high carbon/high chrome tool steel with good wear resistance, but low on torque strength. D-2 should only be used with 4-piece designs where the stud is manufactured from 4140, H-13 or another high torque steel.

CPM®-9V Tool Steel
A new generation tool steel with a high percentage of vanadium carbide developed for high wear (abrasive) applications. It resists wear from abrasive fillers in resin. (Construction: Carbon 1.8%, Manganese 0.50%, Silicon 0.9%, Chromium 5.25%, Molybdenum 1.3%, Vanadium 9.0%.)

CPM®-420V Tool Steel
Crucible's CPM®-420V is a new stainless tool steel best suited for corrosion resistant applications. CPM®-420V is a higher performance upgrade from CPM®-440V. Corrosion resistance is significantly better than CPM®-440V. Wear resistance is about 25-50% better than CPM®-440V, due to the higher vanadium carbide content of CPM®-420V (9% vanadium vs. 5.5-6% in CPM®-440V).

CPM®-M4 Tool Steel
Crucible's CPM®-M4 is a high vanadium, special purpose, high speed steel exhibiting better wear resistance and toughness than D-2 or CPM®-9V. CPM®-M4 has a hardness rating of 64.0. (Construction: Carbon 1.42%, Chromium 4.0%, Vanadium 4.0%, Tungsten 5.5%, Molybdenum 5.25%.)

If you don't see what you are looking for, please contact us at sales@servicesforplastics.com or phone us at 1-800-627-1033.
