Cooling Towers - TP Series (45 to 540 Tons Capacity)

TP Series Cooling Towers are ready to meet the demands of today's
industry. The tower cell is made of all non-ferrous constructed materials, including
a fiberglass shell, TEFC motor, ABS fan blades, PVC wet deck, and distribution
header. The fiberglass shell is 1/2" thick and even thicker in priority support areas.

Features:

All Non-Ferrous Construction
45 to 540 Tons Capacity
TEFC Fan Motor and ABS Fan Blades
Induction Draft Air Movement
Large Orifice Spray Heads
PVC Constructed Wet Deck
Easily removed Inspection Covers

Available in either single or multi-cell designs, TP Series Cooling Towers are constructed of high-strength molded fiberglass with a a UV stabilized coating. The fan blades are made of a glass fiber reinforced polymer and designed in a air foil manner to increase air flow.

PVC constructed inlet louvers direct air flow at a proper angle for even distribution into the wet desk and are easily removed for cleaning. Their vertical orientation eliminates splash out and helps to prevent air-born debris from entering the cell.

The large orifice PVC spray heads are set in a computer designed spray pattern and a drift eliminator prevents over spray and water loss. The stacked honeycomb pattern of the wet deck maximizes water and air flow for greater cooling efficiency.

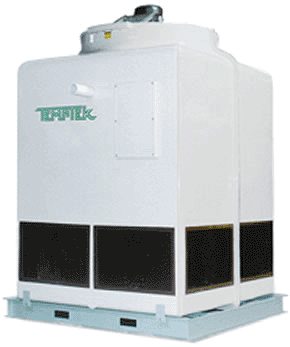

TP Series Cooling Tower (Fiberglass)

TP SERIES SPECIFICATIONS
		T45P	T85P	T05P	T135P	T170P	T210P	T270P	T405P	T540P
CAPACITY ¹		45	85	105	135	170	210	270	405	540
FLOW RATE (GPM)		135	255	315	405	510	630	810	1215	1620
FAN	QUANTITY	1	1	1	1	2	2	2	3	4
	RPM	1170	1170	1170	870	1170	1170	870	870	870
	NO. of BLADES/FAN	9	9	9	6	9	9	6	6	6
	DIAMETER of FAN	36"	42"	42"	60"	42"	42"	60"	60"	60"
	TOTAL CFM	12040	21700	25000	30500	43400	50000	61000	91500	122000
MOTOR	QUANTITY	1	1	1	1	2	2	2	3	4
MOTOR	TOTAL HP	3.0	5.0	10.0	7.5	10.0	20.0	15.0	22.5	30.0
AMPERAGE ²	230/3/60	9.6	15.2	28.0	22.0	28.0	56.0	44.0	66.0	88.0
	460/3/60	4.8	7.6	14.0	11.0	14.0	28.0	22.0	33.0	44.0
	575/3/60	3.9	6.1	11.0	9.0	11.0	12.0	18.0	27.0	36.0
PIPE SIZES	TO PROCESS	3"	4"	4"	4"	6"	6"	6"	2 @ 6"	2 @ 6"
PIPE SIZES	FROM PROCESS	4"	6"	6"	6"	10"	10"	10"	2 @ 10"	2 @ 10"
DIMENSIONS	HEIGHT	138"	138"	138"	140"	138"	138"	140"	140"	140"
	LENGHT	60"	84"	84"	96"	145"	145"	169"	254"	338"
	DEPTH	49"	73"	73"	85"	84"	84"	96"	96"	96"
WEIGHT	DRY	725 lbs	1290 lbs	1390 lbs	1612 lbs	2310 lbs	2210 lbs	3125 lbs	4350 lbs	5800 lbs
	WET	1470 lbs	3100 lbs	3200 lbs	4200 lbs	5700 lbs	5600 lbs	7800 lbs	11000 lbs	15000 lbs
	SHIPPING	1100 lbs	1580 lbs	1680 lbs	1950 lbs	2310 lbs	2710 lbs	3125 lbs	4350 lbs	5800 lbs

Available Options

Fan Motor Starter Kit

Motor starter contactor
Motor overload relay
Nema 1 enclosure
Fan thermostat

Side Outlet

PVC flange
Factory installation

Basin Float Valve

Mechanical float and valve
1/2" supply connection
Factory or field installation

Tower Stand

10' corner post design with cross bracing
Ladder and railing attachments
