Air-Water-Oil Hose

Parker^® GST II™ General Service Hose
For Transferring Air and Water
An economical and versatile general purpose hose. Excellent for air and water service. EPDM tube and cover resists heat, sunlight, ozone and weathering. GST II hose exceeds RMA class C medium oil resistance requirements. Suitable for applications such as oil mist lubricating air lines, but NOT suitable for the transfer of petroleum products. Closely plied reinforcement of high tensile textile core provides excellent coupling retention and kink resistance. 4:1 safety factor.

CONSTRUCTION:
Tube: Black EPDM
Reinforcement: Multiple Textile Plies
Cover: EPDM
Pressure Rating: Varies from 200 to 300 psi depending on size.
Temperature Range: -40°F to +212°F
Fittings: Standard Fittings with Clamps
Colors: Available in Red or Black
Reel Length: Varies from 200' to 800' depending on I.D. size.
Sizes: Available from 1/4" to 1½" I.D.
Packaging: Sold in full reels only.

Parker® GSTII General Service Hose (Cross Section)

PART NO.		HOSE I.D.	HOSE O.D.	MINIMUM BEND RADIUS	PRESSURE RATING (psi)	APPROX. FULL REEL QTY.
RED	BLACK	HOSE I.D.	HOSE O.D.	MINIMUM BEND RADIUS	PRESSURE RATING (psi)	APPROX. FULL REEL QTY.
7092-25RD	7093-25BLK	1/4"	.550"	3.30"	300	800'
7092-31RD	7093-31BLK	5/16"	.594"	3.50"	300	750'
7092-38RD	7093-38BLK	3/8"	.688"	4.00"	300	700'
7092-50RD	7093-50BLK	1/2"	.875"	5.00"	250	550'
7092-63RD	7093-63BLK	5/8"	1.062"	5.50"	250	450'
7092-75RD	7093-75BLK	3/4"	1.156"	6.00"	300	400'
7092-100RD	7093-100BLK	1"	1.438"	8.00"	300	300'
7092-125RD	7093-125BLK	1-1/4"	1.781"	9.00"	200	250'
7092-150RD	7093-150BLK	1-1/2"	2.031	10.00"	200	200'

Parker^® Jiffy™ (Push-on) Hose
For Transferring Air, Water and Oil
This oil resistant hose is excellent for use with air, water, mild chemicals and various petroleum products. Light, flexible and couples in a jiffy; no clamps or special tools needed. Special braid angle for quick and secure push-on coupling retention. Available in various colors for color coding lines. Flame resistant cover is branded with MSHA legend. 4:1 safety factor.

CONSTRUCTION:
Tube: Black Nitrile
Reinforcement: One Textile Braid
Cover: Neoprene
Pressure Rating: 300 psi
Temperature Range: -40°F to +200°F
Fittings: Push-on Fittings or Standard Fittings with Clamps
Colors: Available in black, blue, red, gray or green.
Reel Length: Varies from 400' to 650' depending on I.D. size.
Sizes: Available from 1/4" to 3/4" I.D.
Packaging: Sold in full reels only.

PART NO.	HOSE I.D.	HOSE O.D.	WORKING PRESSURE (psi)	MINIMUM BEND RADIUS	APPROX. FULL REEL QTY.
7212-25__*	1/4"	.500"	300	3.00"	650'
7212-38__*	3/8"	.625"	300	3.00"	650'
7212-50__*	1/2"	.750"	300	5.00"	550'
7212-75__*	3/4"	1.031"	300	7.00"	400'

*Insert the two-letter abbreviation for the color of your choice. BK for Black, BL for Blue, RD for Red, GY for Gray, or GN for Green.

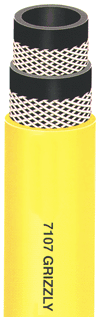

Parker^® Grizzly™ Extra Heavy Duty Industrial Hose
For Transferring Air, Water and Oil
Grizzly™ is a premium multiple purpose hose which combines the toughness of a braided hose with the flexibility of a spiral hose. Grizzly™ is extremely abrasion resistant and oil resistant. The hose meets MSHA IC-1230/20 flame resistance requirements and is non-conductive, with a minimum one megohm resistance per inch at 1000 volts DC.

CONSTRUCTION:
Tube: Black Nitrile
Reinforcement: 4 Spiral Textile
Cover: Yellow NBR/PVC Blend
Pressure Rating: 500 psi
Temperature Range: -40°F to +212°F
Fittings: Standard Fittings with Clamps or Hydraulic Crimp Type
Colors: Available in Yellow Only
Reel Length: Varies from 300' to 750' depending on I.D. size.
Sizes: Available from 1/4" to 1" I.D.
Packaging: Sold in full reels only.

PART NO.	HOSE I.D.	HOSE O.D.	WORKING PRESSURE (psi)	MINIMUM BEND RADIUS	APPROX. FULL REEL QTY.
7107-25	1/4"	5/8"	500	2.00"	750'
7107-38	3/8"	3/4"	500	2.50"	650"
7107-50	1/2"	7/8"	500	3.00"	500'
7107-75	3/4"	1-3/16"	500	4.50"	400'
7107-100	1"	1-1/2"	500	6.00"	300'

Self-Coiling Hose
For Transferring Air
A safe, convenient hose for all pneumatic tools. Standard duty air hose assembly stretches and recoils like a telephone cord. Lightweight, abrasion resistant and completely oil proof. All assemblies include male swivel fittings with spring guard included.

CONSTRUCTION:
Tube: Nylon 11
Reinforcement: None
Cover: Nylon 11
Pressure Rating: 200 psi at +70°F
Temperature Range: -40°F to +180°F
Fittings: Included
Colors: Available in Yellow Only
Length: Available in 12', 25', and 50' lengths.
Sizes: Available in 1/4 and 3/8 NPT.
Packaging: Sold individually.

PART NO.	LENGTH	NPT
SCH-06/12	12'	1/4"
SCH-06/25	25'	1/4"
SCH-06/50	50'	1/4"
SCH-10/12	12'	3/8"
SCH-10/25	25'	3/8"
SCH-10/50	50'	3/8"

PS&E hose is compatible with the following brands: Accuflex, Ace, Armstrong, BDI, delafield, Durodyne, Eaton, Flexcraft, gates, Goodyear, HMD/Thermoid, Jackson Industries, Kord, Kuriyama, Lab Industrial, Lincoln, Nova Flex, NRP Jones, Parker, Parker-Hannifin, Powertrack, Riverbend, Salem-Republic, Senior Flexonics, Swan Hose, TCH, Thermoid, Tifco, Tift, Titan industries, US Hose, Willcox.
