Mold Temperature Controllers

VTO Series (Oil Cooled)







The VTO Series Temperature Controller provides precision temperature control
 from an economically affordable and reliable unit.  This temperature control unit
circulates thermal fluid to provide stabilized process  temperatures to 400F.
Perfect for applications such as plastics and rubber molding, diecasting, and other
processes that require elevated operating temperatures.
.





Features:
  • Stainless Steel Cabinetry
  • Cooling via Heat Exchanger Option
  • Process Temperatures from 100 F to 400 F
  • Microprocessor Control
  • 1 - 3 HP Centrifugal Pump
  • 12 - 24 KW Heaters

The VT Series Temperature Controller circulates thermal fluid to provide precise temperature control to 400F. Stainless steel cabinetry offers attractive appearance, while pumps, cylinders, contactors, valves and instruments are built for long term service and minimal maintenance.

A custom electronic microprocessor based controller includes power, pump, heat and cool "ON" indicator lights.  Large and easy-to-read digital temperature display and setpoint dial selector complete the instrumentation package.

The unit's cylinder is mounted directly to the pump casing and includes a stainless steel heater sheath as well as ungrounded Type "J" thermocouple and flange mounted heater.

The horizontal centrifugal pump has water-cooled pump seals to prolong the life of the pump, while the pump motor has a stainless steel shaft, brass impeller with carbon/niresist shaft seal and custom cast pump housing that accepts heating and cooling cylinders.

Safety features include a water supply pressure switch, motor overload protection, and dual high temperature limits.

The optional heat exchanger provides cooling for the process fluid.

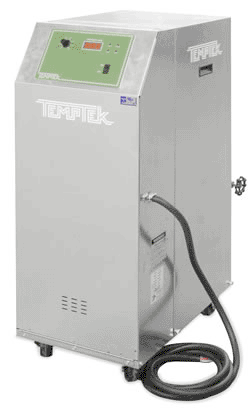

VTO Series Temperature Controller (Oil Cooled)



VTO SERIES w/ 12KW HEATER


2100

2150

2200

2300
PROCESS
PUMP
HP 1.0 1.5 2.0 3.0
GPM 30 45 50 60
PSI 24 26 28 26
FULL LOAD
AMPERAGE 1
230/3/60 34.5 36.4 38.0 46.6
460/3/60 17.9 18.7 19.5 23.3
DIMENSIONS HEIGHT 44" 44" 44" 44"
WIDTH 16" 16" 16" 16"
DEPTH 24" 24" 24" 24"
CONNECTIONS TO/FROM
PROCESS
1" 1" 1" 1"
WATER SUPPLY
DRAIN
1/2" 1/2" 1/2" 1/2"
WEIGHT (Shipping) 275 lbs 285 lbs 300 lbs 290 lbs

VTO SERIES w/ 16KW HEATER


2100

2150

2200

2300
PROCESS
PUMP
HP 1.0 1.5 2.0 3.0
GPM 30 45 50 60
PSI 24 26 28 26
FULL LOAD
AMPERAGE 1
230/3/60 50.6 47.0 49.0 51.0
460/3/60 25.4 23.5 24.5 25.5
DIMENSIONS HEIGHT 44" 44" 44" 44"
WIDTH 16" 16" 16" 16"
DEPTH 24" 24" 24" 24"
CONNECTIONS TO/FROM
PROCESS
1" 1" 1" 1"
WATER SUPPLY
DRAIN
1/2" 1/2" 1/2" 1/2"
WEIGHT (Shipping) 580 lbs 585 lbs 595 lbs 610 lbs

VTO SERIES w/ 24KW HEATER



2100

2150

2200

2300
PROCESS
PUMP
HP 1.0 1.5 2.0 3.0
GPM 30 45 50 60
PSI 24 26 28 26
FULL LOAD
AMPERAGE 1
230/3/60 73.8 75.8 77.8 71.0
460/3/60 36.9 37.9 38.9 35.5
DIMENSIONS HEIGHT 44" 44" 44" 44"
WIDTH 16" 16" 16" 16"
DEPTH 24" 24" 24" 24"
CONNECTIONS TO/FROM
PROCESS
1" 1" 1" 1"
WATER SUPPLY
DRAIN
1/2" 1/2" 1/2" 1/2"
WEIGHT (Shipping) 625 lbs 630 lbs 635 lbs 645 lbs


1 Full Load Amps shown. No allowance for in-rush. Full Amps are higher than Run Load Amps and must be used for sizing disconnects and supply wiring
